Article 3.HM5.SM02

3.HM5.SM02
Complete system
BalconBMT-Software

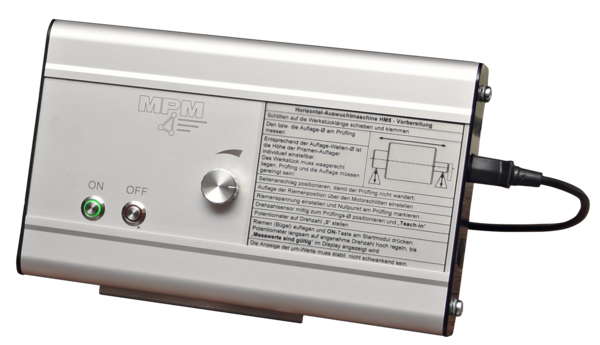

Start module for horizontal balancing machine HM5

For controlling the 3.HM5 motor

For controlling the 3.HM5 motor,
in conjunction with 3.HM5 and balancing electronic 3.BMT240M.T.2

  • Stepless speed adjustment
  • Direction of rotation adjustable
  • Connection to 3.HM5
  • Incl. motor cable and mains cable
  • Mounted on stand
  • Sturdy, shapely aluminium housing (PROFILINE housing)

Catalog-# / Description

Catalog-# Order-# Description
3.HM5.SM2 1045663A Start module for horizontal balancing machine HM5

Technical details

Technical data
Operating voltage 230V / 50Hz
Power consumption approx. 120 W
Speed control stepless
Rotation direction Adjustable: left rotation / right rotation
Dimensions W x H x D 305 x 190 x 70mm
Weight approx. 3 kg
standard enclosure PROFILINE
Ambient operating temperature 0 °C to +50 °C
Ambient storage temperature -10 °C to +60 °C
Air humidity 20 % to 50 % rel. humidity

Dimensional drawings

AccessoryDescription Article
Horizontal balancing machine 3.HM5 3.HM5to product
Balancing electronic incl. balancing software BalconBMT for 3.HM5 3.BMT240M.T.2to product
CAN-USB adapter,
Connection between PC and data cable
3.CAN.USB.TSto product
Data cable, 9-pin,
Connection between balancing electronics and CAN-USB adapter
3.DKC.B09.01to product
Precision pocket scales 3.CMto product
Grub screw sets 3.0.WGSto product
Vibration sensor for 3.HM5 3.PU.M9.4.1,5.V2.1to product
Speed sensor optical for 3.HM5 3.DS.WV01.OD.02to product
Articulated tripod, for mounting the speed sensor 3.0.GS00to product
Test masses for setup / calibration 3.TGto product
Balancing putty 3.0.WK02to product
