Article 4.RS05.R

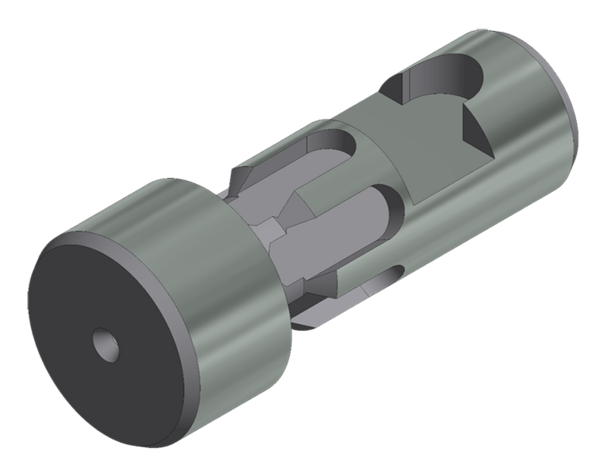

Sample part/application example

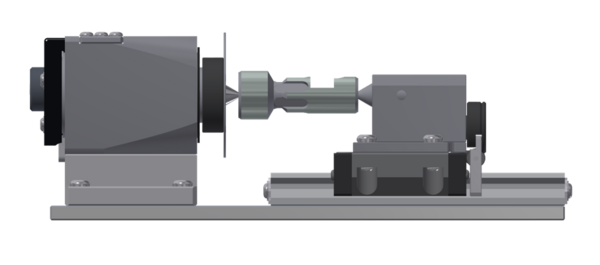

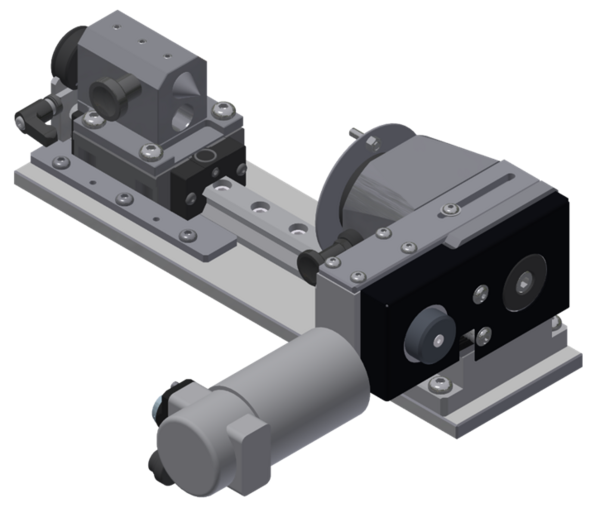

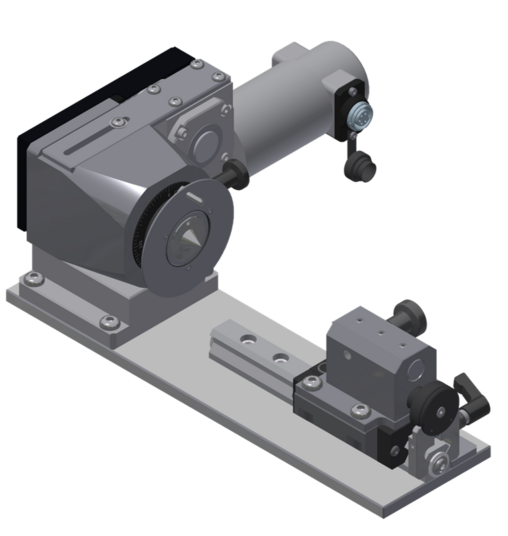

RAPID precision grinding unit

For cantilevered grinding and between centres on surface grinding machines

  • Ideal for single and small series parts
  • Rational and pleasantly easy to use
  • Principle proven since 1980
  • Attractive low price
  • Optional accessories:
    ER32 collets
    ER11 adapter;
    3-jaw chuck
    Magnetic chuck
    Driving disc

Catalog-# / Description

Catalog-# Order-# Description
4.RS05.R 1069556A RAPID precision grinding unit for cantilevered grinding and between centres, on surface grinding machines

Technical details

Technical data
Supporting surface approx. 350x100mm
Weight approx. 13kg
Height approx. 128mm
Index dividing apparatus 15° (+/- 1')
Centre height approx. 45mm
Tool holder ER32 (for collets Ø 2-20mm)
Spindle rotation 0,002mm
Drive system Electric motor, infinitely variable, 0-300 rpm, clockwise / anti-clockwise rotation switchable
Power supply 115-230V / 50-60Hz / 70W

Dimensional drawings

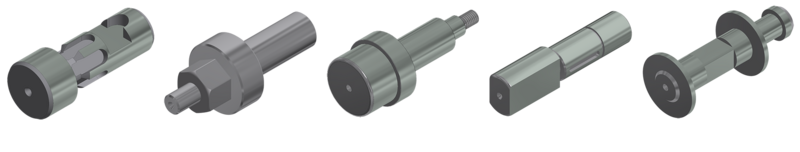

Application examples

Often a round ground single part is acutely needed...!
You solve this task with extended possibilities of your surface grinding machine


For ER32 Collets
2-20mm (Standard)


Driving tip support


Adapter ER32 for
ER11 Collets 1-7mm


Adapter for 3-jaw chuck
Ø 80mm, 1007358A
Chuck = 1011397A


Adapter for DECKEL S20x2
Collets 3-16mm


Adapter for magnetic chuck
Ø 80mm, 1065448A
Chuck = 1047644A


RAPID ready for immediate use!

AccessoryDescription Article
Control unit, for RAPID grinding unit 4.SG01to product
3-jaw chuck for RAPID grinding unit 4.0.BF080to product
Magnetic clamping chuck for RAPID grinding unit 4.0.MF.xxxto product
Collet holders for RAPID grinding unit 4.0.xxxto product
Driving tip for RAPID grinding unit 4.MNS01.80to product
