Horizontal balancing machine 3.HM50-30HF
BalconBMT Software

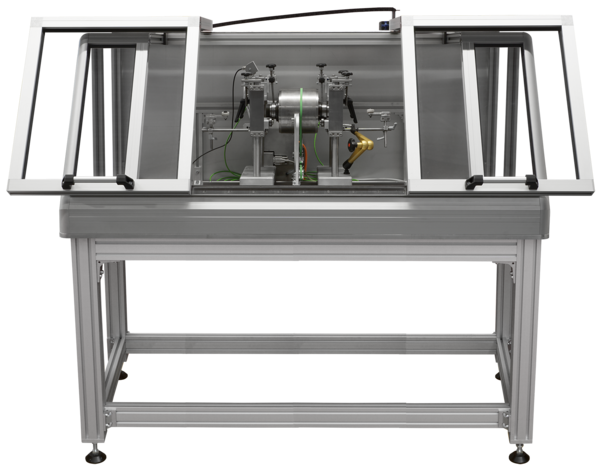

3.HM50-30HF with protective cover and table

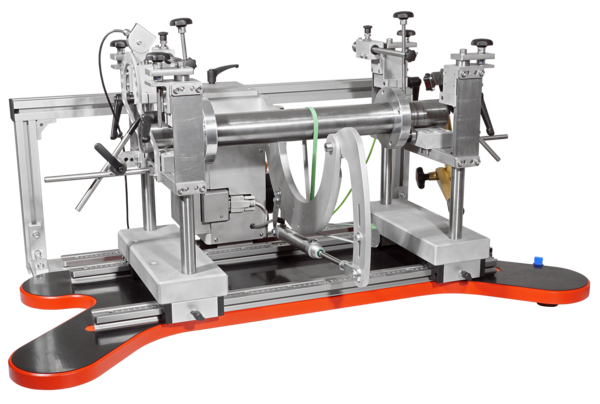

Horizontal balancing machine HM50-30HF

For balancing cylindrical and shaft-shaped rotors

  • For rotor weights up to max. 30kg
  • Highest measuring accuracy up to 0,1gmm/kg
  • Pleasantly simple operation
  • Software for 1- and 2-plane measurement
  • Test report printing at the touch of a button
  • Data export of balancing results
  • International Languages (D, E, ES, F, I, R, CN, PT, HR,)
  • Protective cover incl., base optional

Special versions available on request.

Catalog-# / Description

Catalog-# Order-# Description
3.HM50-30HF 1061419A For shafts up to approx. 30kg

Technical details

Mechanic Electronic / Sensor 3.HM50-30HF
Rotor weight up to max. 30 kg Balancing electronics complete, 3.BMT240M.T.2.S3.I/O with Quickstart buttons
Rotor - Ø up to approx. 200 mm Balancing accuracy 0.1 gmm/kg
Rotor lengths up to approx. 700 mm Vibration sensor 3.PU.M6.3.0.V2.1 (2x)
Rotor spigot - Ø 15 - 150 mm Speed sensor 3.DS.PZ-G 101CP
Base area 1100 x 500 mm Machine weight approx. 50 kg Start module 3.HM50.SM with frequency converter Speed control, left/right rotation
Line laser, angle measuring device 230 V / 50 Hz; 120 W (asynchronous motor)
Protective cover (optional) Data cable, CAN-USB adapter

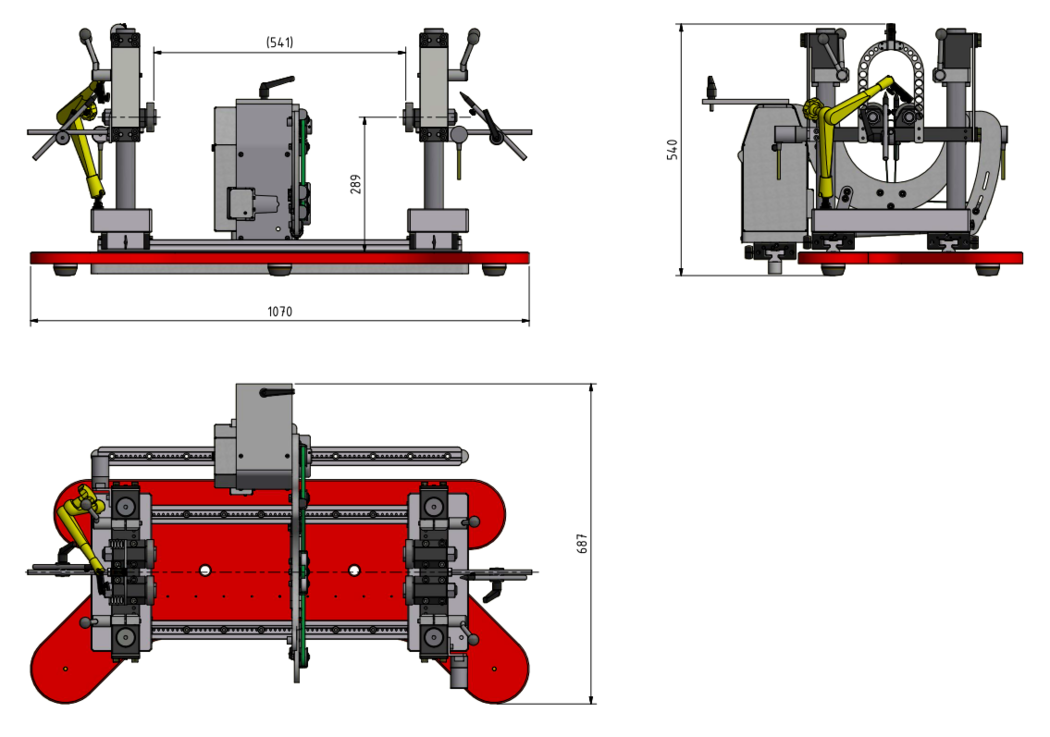

Dimensional drawings

AccessoryDescription Article
Balancing electronic incl. balancing software BalconBMT
for 3.HM50 / 3.HM50-30HF
3.BMT240M.T.2.S3.E/Ato product
Start module for 3.HM50 / 3.HM50-30HF 3.HM50.SMto product
CAN-USB adapter,
Connection between PC and data cable
3.CAN.USB.TSto product
Data cable, 9-pin,
Connection between balancing electronic and CAN-USB adapter
3.DKC.B09.01to product
HM50 workplace / protective enclosure 3.HM50.SE / 3.HM50.SHto product
Precision pocket scales 3.CMto product
Grub screw sets 3.0.WGSto product
Vibration sensor for 3.HM50 3.PU.M6.3.0.V2.1to product
Cable 4/3-pole for HM50 vibration sensor 3.4/301SBto product
Speed sensor optical for 3.HM50 3.DS.PZ-G101CNto product
Cable 4/3-pole for HM50 speed sensor
3.DS.PZ-G101CN
3.4/305BS.DS.M8.1to product
Articulated tripod, for mounting the speed sensor 3.0.GS01to product
Test masses for setup / calibration 3.TGto product
Balancing putty 3.0.WK02to product
